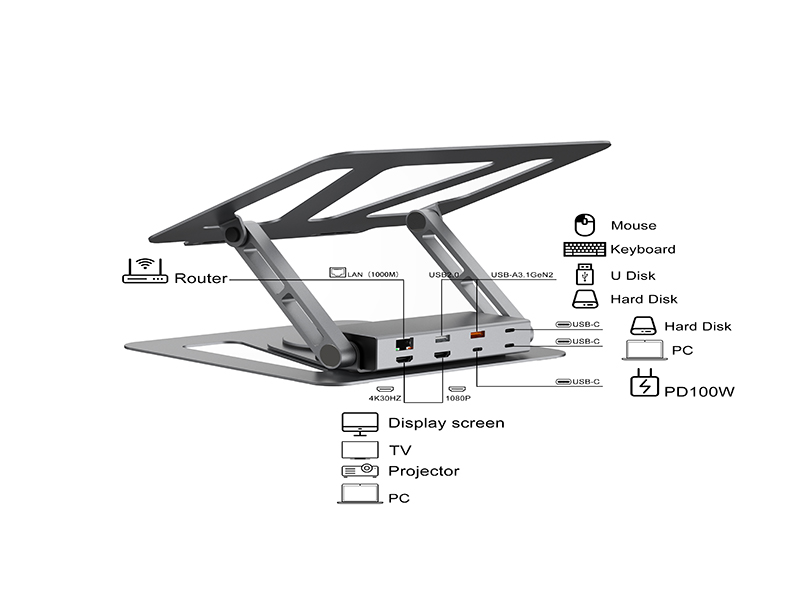

Input:

USB-C  Female x1


Output:

USB- C Female ( PD) x1

HDMI 2.0 x 2

Gigabit LAN  x1

USB-A3.1  x1

USB-A3.0  x1

USB-C3.1  Female Gen1 x1

The HDMI1 channel supports 4k@30Hz output and is backward compatible. USB mode

1. Support MST function in Windows System Support (MST) technology, USB-C port without DisplayPort mode.

2. MacOS supports MST technology, extended mode per display. MST function is supported in USB-C port DisplayPort mode

The HDMI2 channel supports1080P@60Hz output and is backward compatible. USB mode

1. Support MST function in Windows System Support (MST) technology, USB-C port without DisplayPort mode.

2. MacOS supports MST technology, extended mode per display. MST function is supported in USB-C port DisplayPort mode

USB3.1 Type C supports charging up to 100W 20V@5A.

USB3.1 USB-A1 GeN2 supports 10Gbps BC1.2, charging at 5V@1.5A Max and is backwards compatible with USB2.0

USB2.0 USB-A2  supports 480Mbps , charging at 5v@0.6A Max

LAN supports up to 1000Mbps bandwidth

USB3.1 Type C GeN2 supports 10Gbps BC1.2  charging at 5v@1.5 A Max and is down compatible with USB2.0
