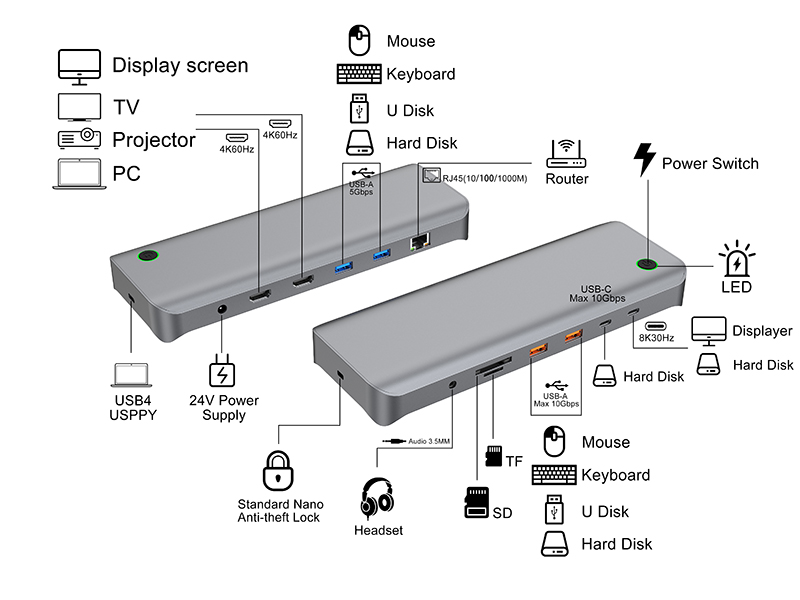

Input:
USB4 x1
Output:
HDMI (8K@60Hz) x2
USB3.1 Type C to device (8K@30Hz) x1
USB3.1 Type C 10G or PD 30W x1
USBA 3.1 (10Gbps BC1.2) x2
USBA 3.1 (5Gbps) x2
RJ45 10M/100M/1000M/2.5G x1
SD4.0 Max 312 MBps x1
TF 4.0 Max 312 MBps x1
Audio x1
Power Jack x1(180W) 24V7.5A x1
USB4.0 USB-C to USB-C 1m x1
USB4 Female (to host) :
Adopting Goshen Ridge solution with max 40Gbps for high speed data and outstanding video transfer;
Support USB4/Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions;
Support max 96W, 5V/9V/15V@3A,20V@4.8A Host charging.
USB4 downstream port :
Support USB4 up to 40Gbps, compatible with Thunderbolt 4,Thunderbolt 3,USB4, DP Alt mode,
USB Allow you to cascade USB4/Thunderbolt devices up to 6 levels Support max 8K Supports 15W downstream charging for connected device
Note: The port does not support PD charging
HDMI#1 or HDMI#2 :
Support max 8K/60Hz,4K@144Hz
Support HDCP v1.4/2.3
Support HDR
Support RGB, YCC444, YCC422, YCC420
Support 8/10/12 bit deep color
Among 2 HDMI ports, support max 8K/60Hz for one port, or max dual displays（8K/30Hz+4K/60Hz）with different pictures on windows system
Among USB4 downstream port and 2 HDMI ports, only can output 2 videos simultaneously
None：
1)The actual resolution supported is determined by the host and the Display.
2)Max resolution can be achieved with host device supports DP1.4 & DSC.2
USB-C PD&Data :
Compliant with USB3.2 Gen 2 with max 10Gbps data transmission, downward compatible with lower versions
Support PD3.0 max 30W output to charging for the mobile phone
Support 5V/3A, 9V/3A, 15V/2A, 20V/1.5A output
USB3.2 USB-A Gen2 :
Compliant with USB3.2 Gen 2 with max 10Gbps BC1.2 data transmission, downward compatible with lower versions
The port (close to USB-C ) support max 1.5A downstream charging, another one support max 900mA downstream charging
USB3.2 USB-A Gen1 :
Compliant with USB3.2 Gen 1 with max 5Gbps data transmission, downward compatible with lower versions
Max 900mA downstream charging per port
SD4.0/TF 4.0 :
SD/TF supports SD4.0 with max 312 MBps
Support 2 card slots to work simultaneously
RJ45 :
Support 10M/100M/1000M/2.5G bandwidth
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz. support IEEE 802.3az-2010(EEE), IEEE 802.1P, IEEE 802.1Q, IEEE 802.3x
Support Wake-On-LAN and Wake-On-WAN
LED indicator: 1) No light: power off. 2) Orange: power on. 3) Blue: Host connection OK.
3.5mm Audio JACK :
DAC supports 44.1/48/96/192KHz/384KHz Sample Rate, 16/24/32-bit
ADC input supports 48KHz Sample Rate, 16bit
Support Stereo output and microphone input
Automatic detection switch to CTIA/MTP mode
DC Power Jack :
Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices
Used to connect 24V 180W DC power supply. Compatible with 19V ~ 24V, 180W or higher power DC power supply
Max 180W power for host and the DOCK
Max 96W for host charging
Power Switch & Power indicator LED :
The product turns off by default. After connecting the power supply, you need to press the switch to enable the product to work.
The LED is bright orange when the product is powered on and bright blue when the product is connected to the host.
